MFP-3D-BIO AFM

Available from Asylum Research

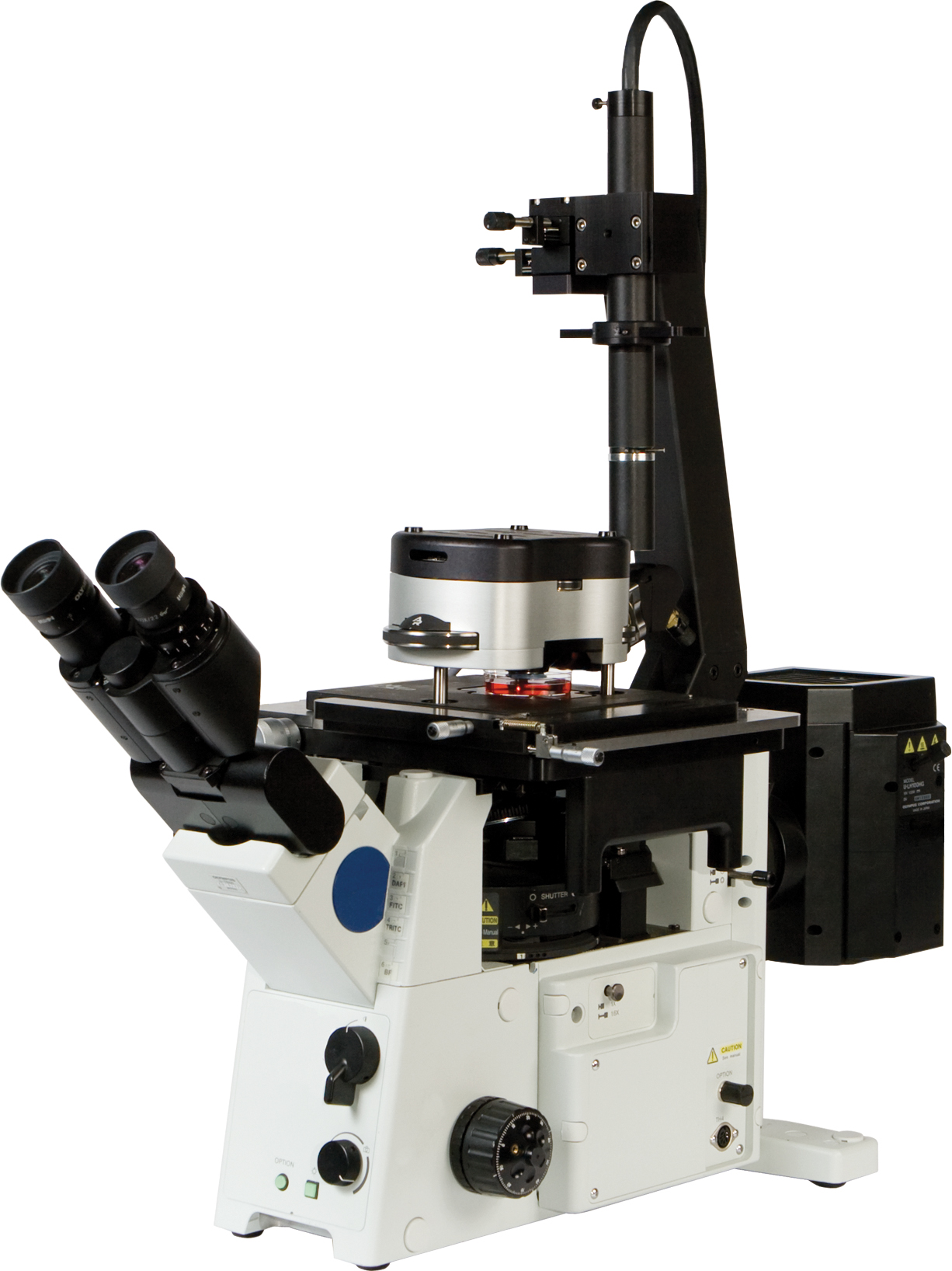

MFP-3D-BIO™
Atomic Force Microscope

The Only Full-Capability AFM
on an Inverted Optical Microscope

The MFP-3D-BIO provides the highest sensitivity and most accurate images and measurements possible on an inverted optical platform. The NPS™ closed loop nanopositioning sensors on all three axes ensure distortion-free images on samples as small as proteins and as large as cells – in both air and liquid. The MFP-3D measures the cantilever deflection to better than 20pm (8pm typical) without artifacts, making the MFP-3D ideal for force measurements such as unfolding single molecules or probing cell mechanics.

Uncompromised AFM on an Inverted Optical Platform

AFM Is More Than Just Pretty Images

The MFP-3D provides a truly quantitative three-dimensional map of your sample. Asylum’s superior sensor and flexure stage technology coupled with our intuitive control software also gives you the ability to zoom and offset with a single mouse click - even from a previously captured image. Independent lateral (X-Y) and vertical (Z) positioning stages eliminate the crosstalk errors common to systems using tip-scanners. And the large Z range (up to 40µm) enables imaging of tall samples and cells, force curves on highly adhesive soft materials like gels, and other challenging applications. Supports all standard AFM scanning modes, including contact mode, lateral force, AC mode with phase, and advanced modes such as Dual AC™, nanomanipulation and nanoindentation.
