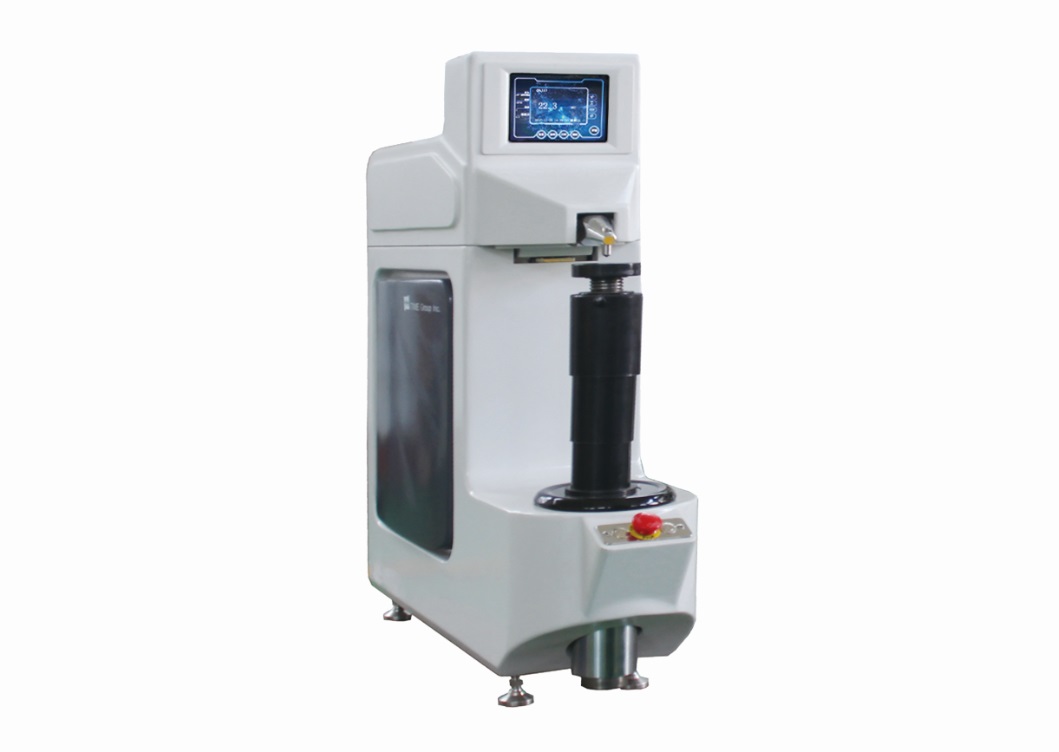

Automatic Rockwell and Superficial Hardness Tester TIME®6356
Available from Beijing TIME High Technology Ltd.
TIME®6356 is the latest load cell type Rockwell hardness tester developed by TIME Group Inc. It can automatically test both Rockwell hardness and superficial Rockwell Hardness. TIME®6356 provides an ideal solution for hardness testing with easy opeartaion and high accuracy.
1.Conform to the standards of GB/T230.2, ASTM E18 and military industry
2.Multi test forces for testing both Rockwell hardness and superficial Rockwell hardness
3.Protrudent indenter design to easily reach the inner part of the object (minimum Ф23mm) and the outer part
4.Real-time force control system ensures providing precise test forces.
5.For continuous measurement, the indenter automatically moves back and forth instead of lifting the table to improve the accuracy.
6.Auto lift the table and automatic setting preliminary test force
7.Touch screen and back-light LED display
8.Curved surface auto correction
9.Conversion to other hardness scales (HV, HK, HBW) and tensile strength
10.OK/NG tolerance judgement
