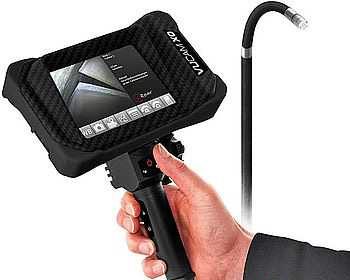

VUCAM XO Videoscope

Product Details

Portable Videoscope System with 6mm Diameter Probe

The VUCAM XO is a budget priced high performance portable video borescope. Advanced technologies and experience based know-how have contributed to the development of the VUCAM XO. This is an easy-to-use Borescope with a full set of practical features. Use of the VUCAM XO centers around a cutting-edge graphical user interface (GUI) displayed on large bright touch screen.

VUCAM XO: Probe

Working length 2.2 m / 7.2 ft. | 3.3 m / 10.8 ft. | 6.6 m / 21.6 ft.
Diameter 6.0 mm / 0.23“
Articulation 130° | 120° | 100°
Probe construction Four layer, final layer cut resistat tungsten.

Optical specification

Direction of view (DOV) Standard 0° forward, optional with tip adapter 90° side view with 100° field of view
Field of view (FOV) Standard 45°, optional with optical adapter 100° wide angle
Focus range 3 mm to endless depending on optic adapter chosen

Illumination

Type Special high power hybrid LED glass fiber ilumination. Digital phase width light control auto / manual
Light power High efficiency LED illumination

Display

Image representation Screen type, high resolution 5.7" LED back illuminated TFT display, 640 x 480 Pixel, anti glare.

Digital data capturing

Image recording Digital single JPEG format. Ability to capture images during video recording.
Resolution RGB 263.000 colors, 640 x 400 Pixel,

User interface Unique graphic user interface by touch screen.
