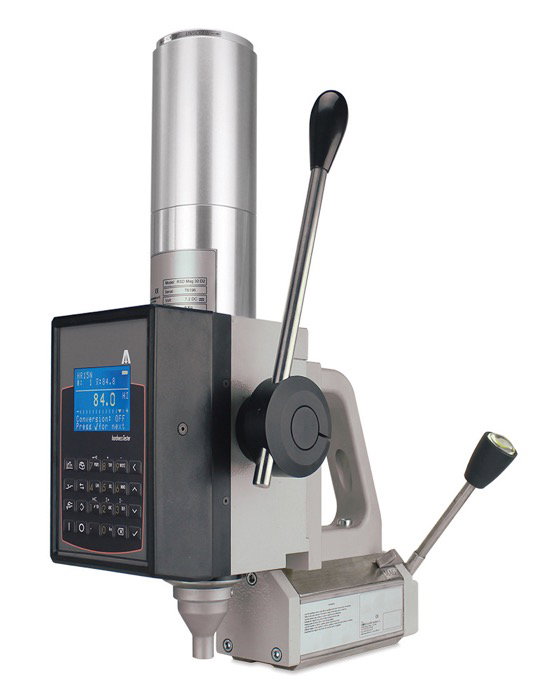

AFFRI® RSDMAG (Click to enlarge image) Portable hardness tester with magnetic clmping base for real Rockwell, Superficial Rockwell, Brinell and Vickers methods in compliance with ASTM E10 E18 and ISO standards. Test loads from 3 to 187,5 kgf (29,42 to 1839 N)

User friendly:
Pulling one single start lever the measure result will appear in few seconds. It is so simple and easy to use that there is no need for any particular preparation by the operator.
1 - Identify the test area and place the hardness tester on the sample, no matter size or geometry
2- Locking the base lever the magnet will strongly adhere to the test piece for the entire test cycle
3- Start the test and in 4 seconds the result will appear on the display scale or dial gauge
Safe clamping on any surface, from round to flat, with self allign of the indenter with the measurement axis. It works even upside down and ensures the highest accuracy and repeatability at every measurement.

AFFRI® RSDMAG can be combined with two different size of special stand support in order to have a regular bench top tester based on your needs.

- Equipped with an advanced calibrated load cell system for multi load force

- Measuring head 50 mm stroke with clamping of the piece

- Automatically compensates any failure or bending during the measurement

- Multifunctional key pad

- High accuracy and high "repeatability and reproducibility" standards
